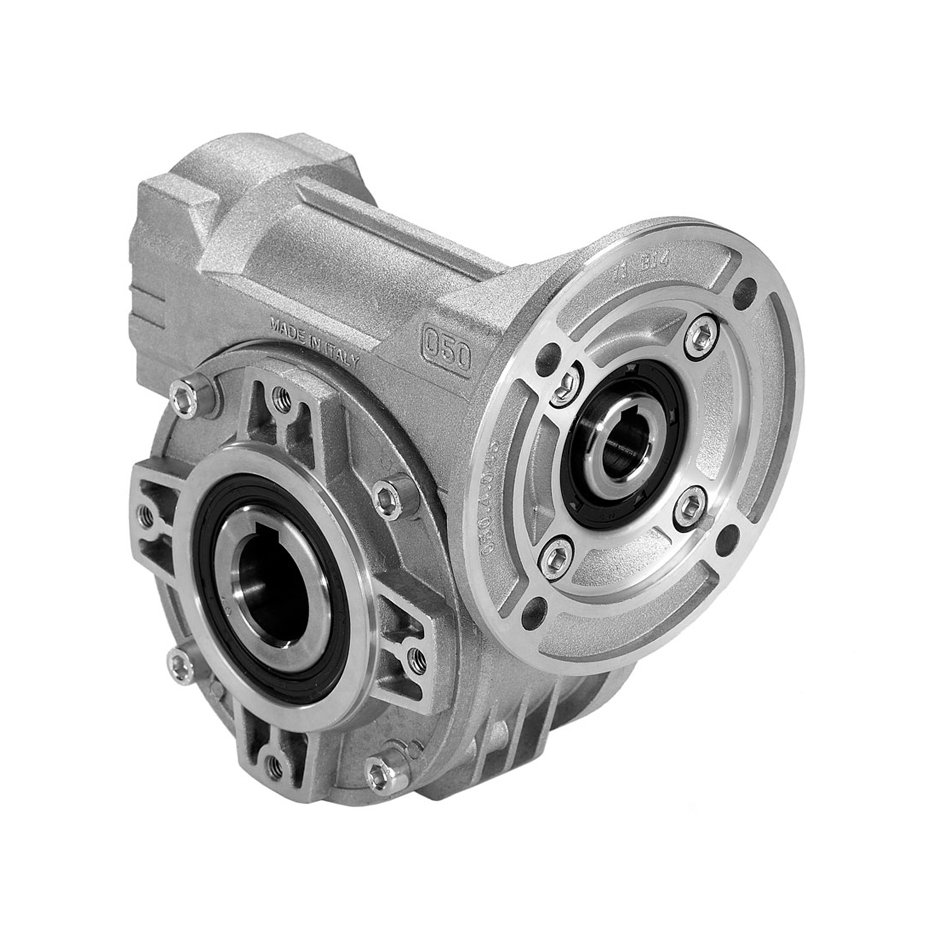

Hydromec Worm Gearboxes


Worm gearunits are the most commonly found speed reducers that appear in industry today. They represent a cost effective, high-performance solution for simple applications that require relatively low torque. To ensure interchangeability with other manufactures we stock both the round and square aluminium base units in Stockport.

The modular design of these gearboxes allows for flanges, feet, torque arms, single and double output shafts to be easily added allowing us to individually configure a gearbox that will suit your drive requirements.

Highlights of Hydromecs worm gearunits are :-

– Single-piece cast iron housing – is vacuum impregnated (MIL-STD 276). No secondary finish required but readily accepts paint. Combines light weight with high tensile strength.
– Single piece alloy steel input shaft and worm shaft – High helix angle worm is case-hardened (RC 58-60), ground teeth, teeth are profiled and radiused for noise reduction and enhanced efficiency.
– Oversized Bearings – Bearings are positively retained, ideal for frequent starting and reversing applications.
– Bronze alloy worm gears – Centrifugally cast onto a hub for maximum strength and superior life.
– Supplied with standard IEC B5 or B14 input. (Nema on request)
– Can be offered with ATEX certification for gas and dust on request.

Please view our range in the data sheets and catalogues below. Our quick interchange guide will show you at a glance which Hydromec units are drop in replacements for other manufacturers, alternatively call our sales department who will be only too pleased to assist you on 0161 432 9995

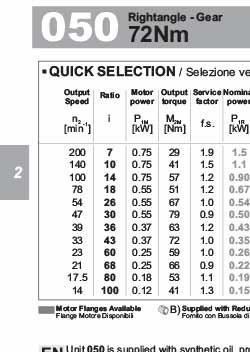

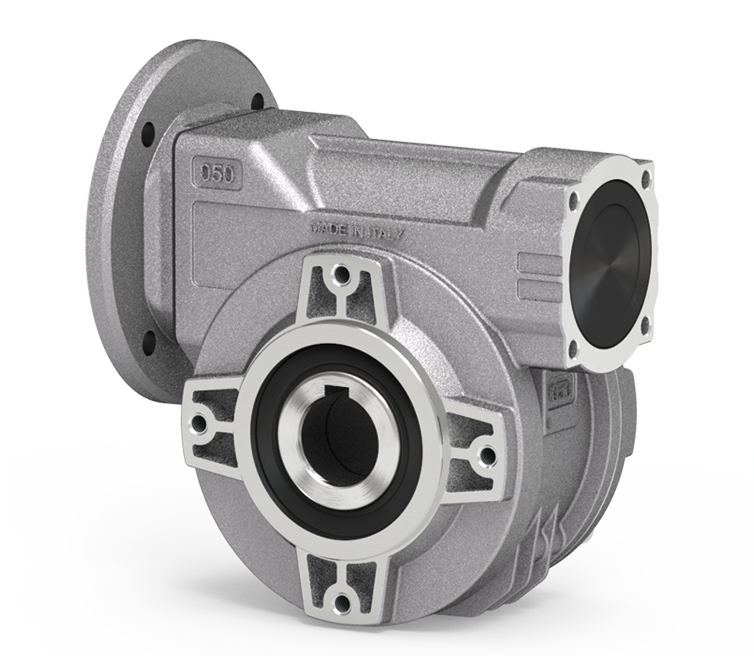

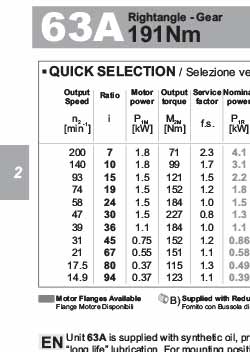

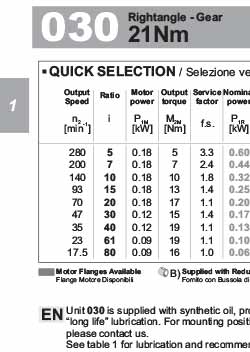

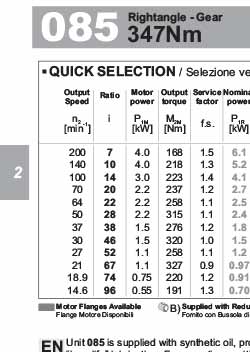

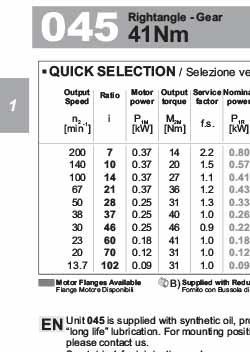

Round Worm Gearbox

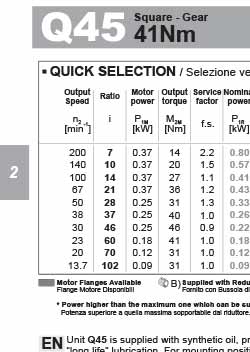

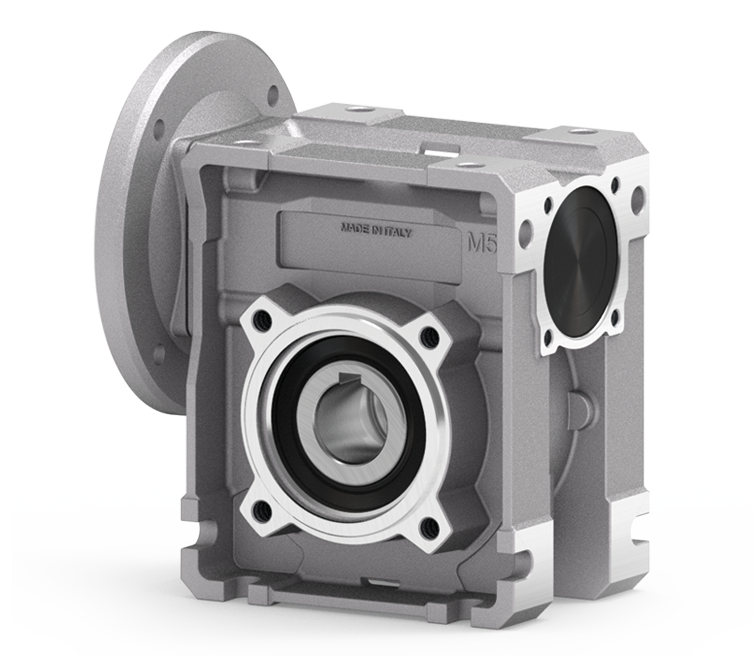

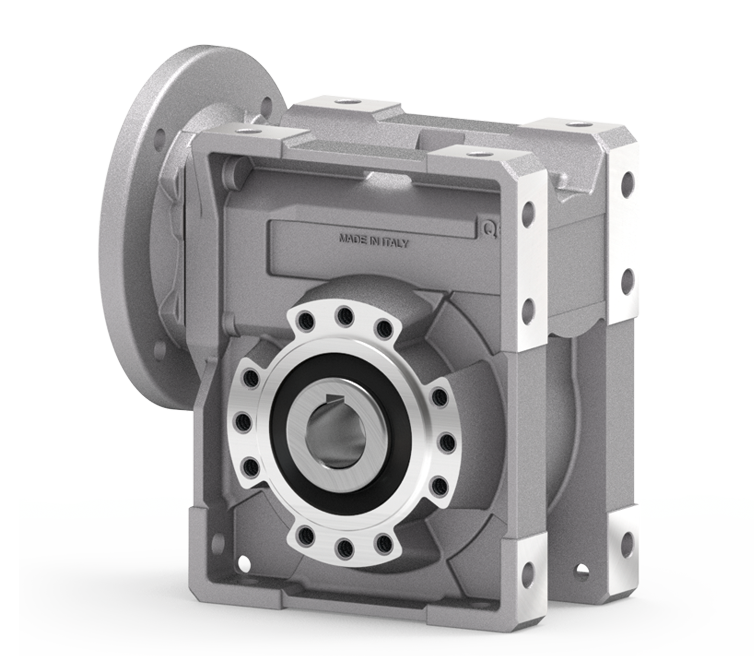

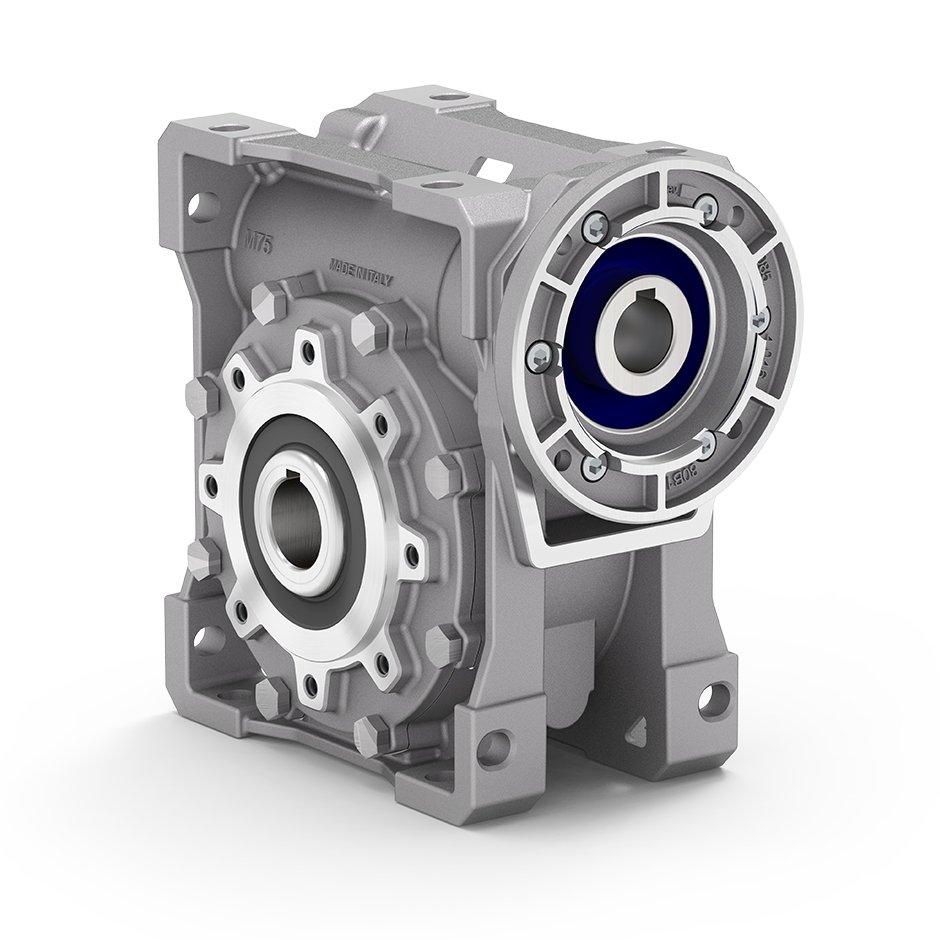

Square Worm Gearbox

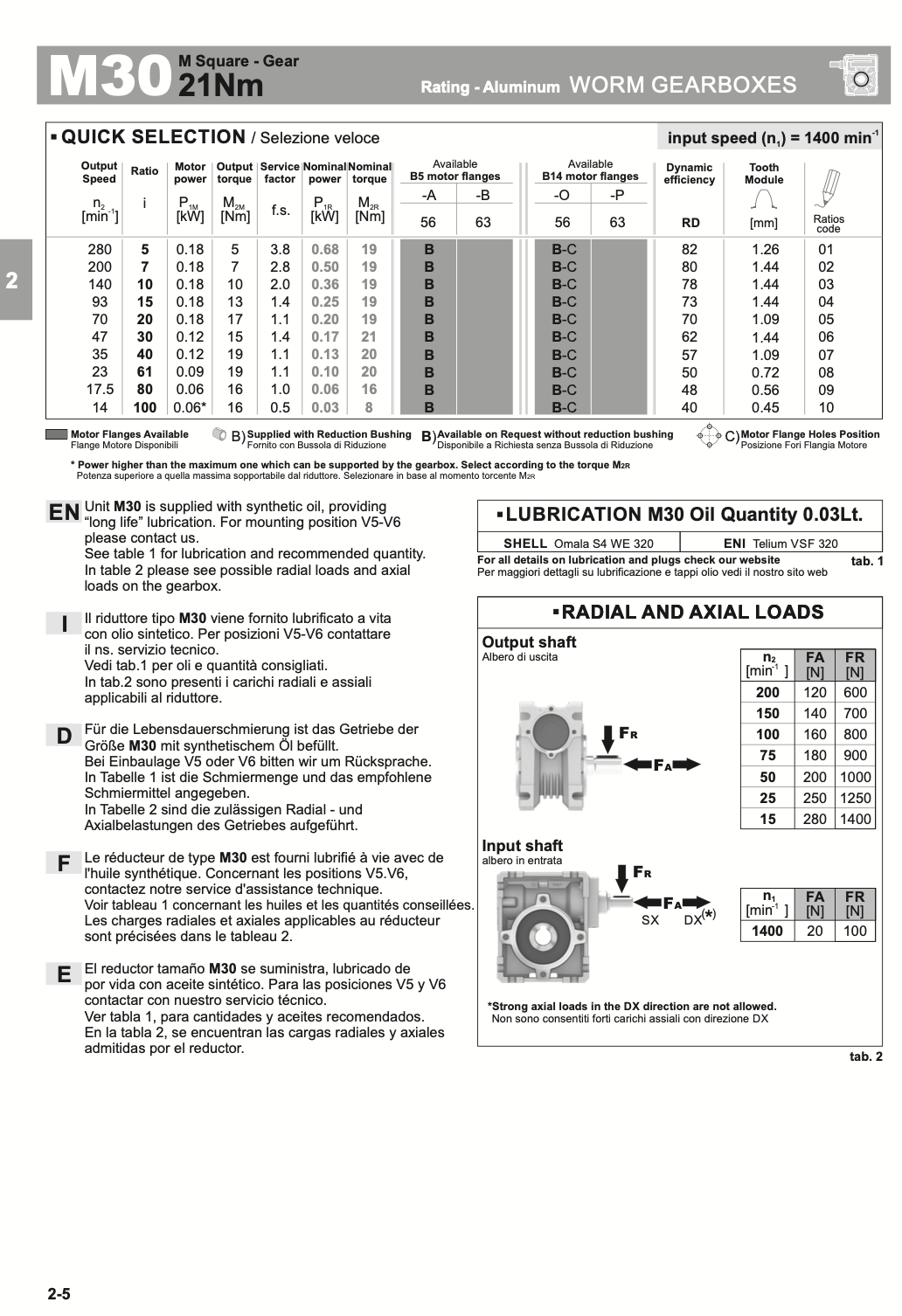

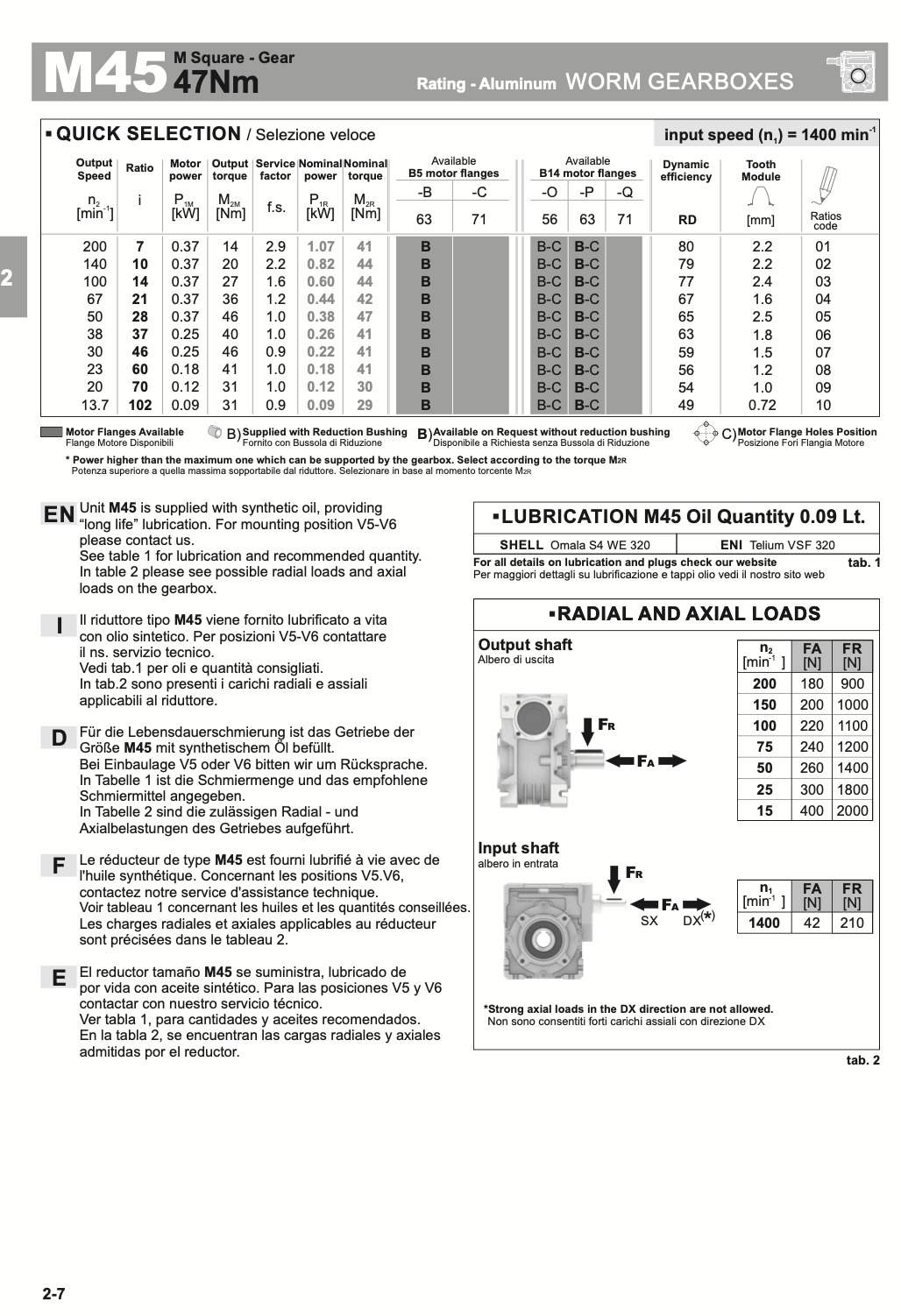

Data Sheets - Square Worm
